| Specification | Details |
|---|---|

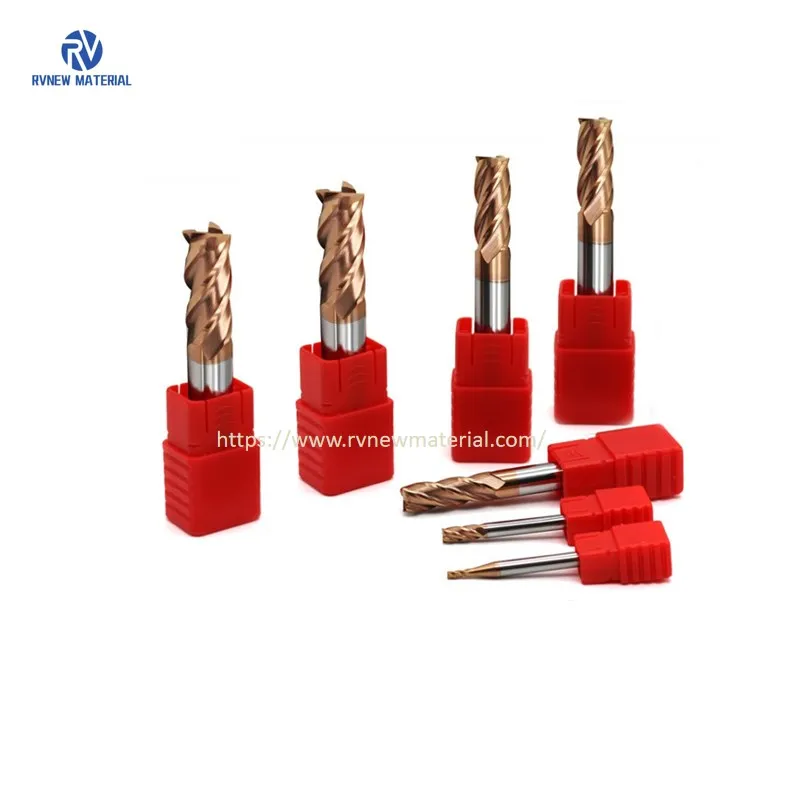

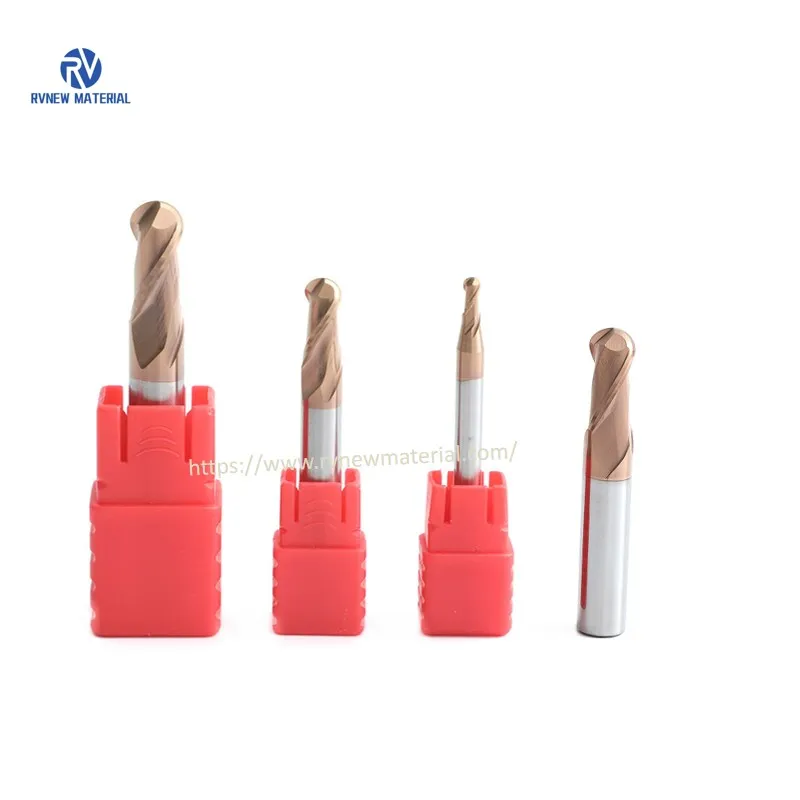

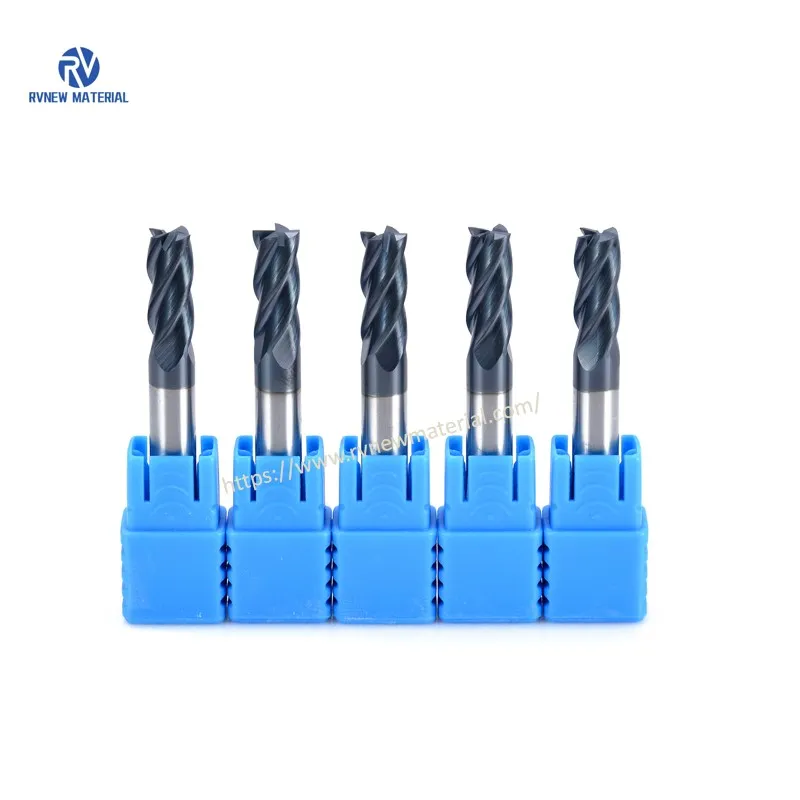

| End Mill Types | High-feed-rate, Corrugated edge, Radius, Ball nose, Sharp flat end, Corner protection flat end. |

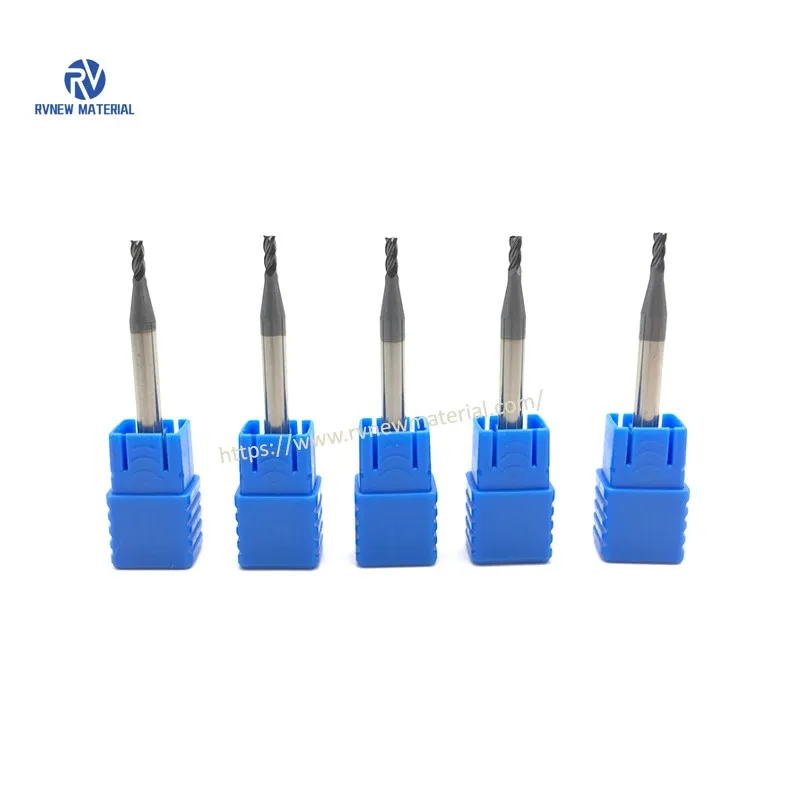

| Structure Type | Tiny diameter, Straight neck, Taper neck, Standard. |
| Material | HSS, Carbide, etc. |
| Flutes | 2/3/4/5/6 flutes |
| Hardness | HRC45/55/60/65 |
| Helix Angle | 35°, 45° |
| Size | Dia 1-20mm, Overall length 50-150mm |
| Coating | NaNo TiAlCrN, NaNo TiAlXN, Nano TiAlN, TiAlN, AlTiN, CrN, AlCrXN, etc. |
| Machining | Side face, Step shoulder, Straight slot, Deep flattened slot, Profile, Cavity, Ball nose slot, etc. |
| Workpiece | Carbon steel, Alloy steel, Pre-hardened steel, Hardened steel, Stainless steel, Cast iron, Aluminum alloy, etc. |
Super Raw Material
| Type | Material | Co | Grain Size | Flexural Strength |
|---|---|---|---|---|
| HRC45 | YG10X | 10% | 0.7um | 3320 N/mm2 |
| HRC55 | YG10.2&WF25 | 10% | 0.6um | 4000 N/mm2 |
| HRC60 | K40,K44 | 12% | 0.5um | 4300 N/mm2 |
| HRC65 | H10F | 10% | 0.5um | 4300 N/mm2 |
Super Coating
| Type | Hardness (HV) | Thickness (UM) | Oxidation Temp (ºC) | Friction Coeffient | Color |
|---|---|---|---|---|---|
| AlTiN | 3200 | 2.5-3 | 900 | 0.3 | Black |
| TiAIN | 2800 | 2.5-3 | 800 | 0.3 | Violet |
| TiSiN | 3600 | 3 | 1000 | 0.45 | Copper |
| NACO | 42(GPA) | 3 | 1200 | 0.4 | Blue |

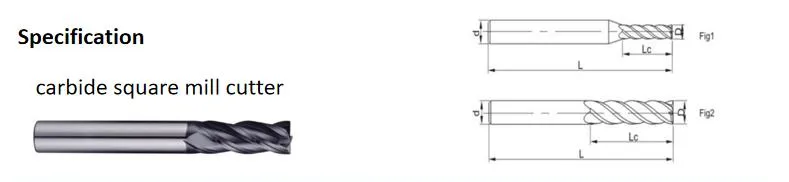

| Diameter (D) | Flute Length (Lc) | Flutes (Z) | Shank Dia (d) | Overall Length (U) |
|---|---|---|---|---|
| 1.0 | 2.5 | 4 | 4 | 50 |
| 2.0 | 5 | 4 | 4 | 50 |
| 4.0 | 10 | 4 | 6 | 50 |
| 6.0 | 15 | 4 | 6 | 50 |
| 8.0 | 20 | 4 | 8 | 60 |
| 10.0 | 25 | 4 | 10 | 75 |
| 12.0 | 30 | 4 | 12 | 75 |
| 20.0 | 45 | 4 | 20 | 100 |

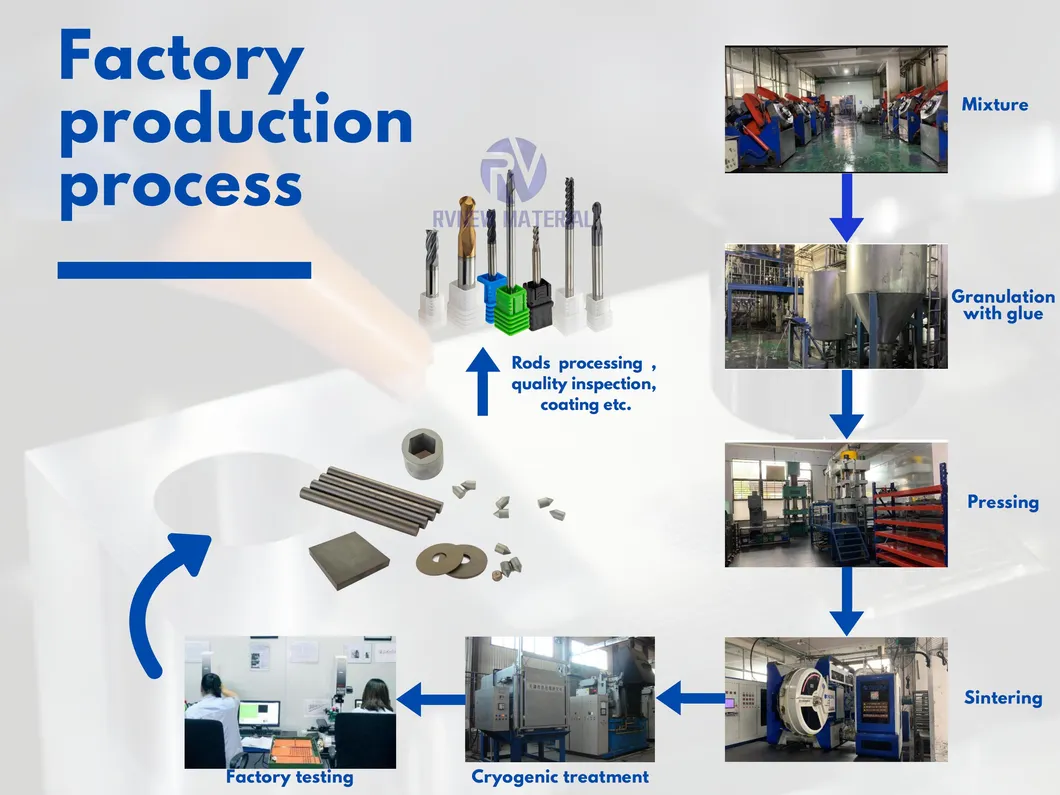

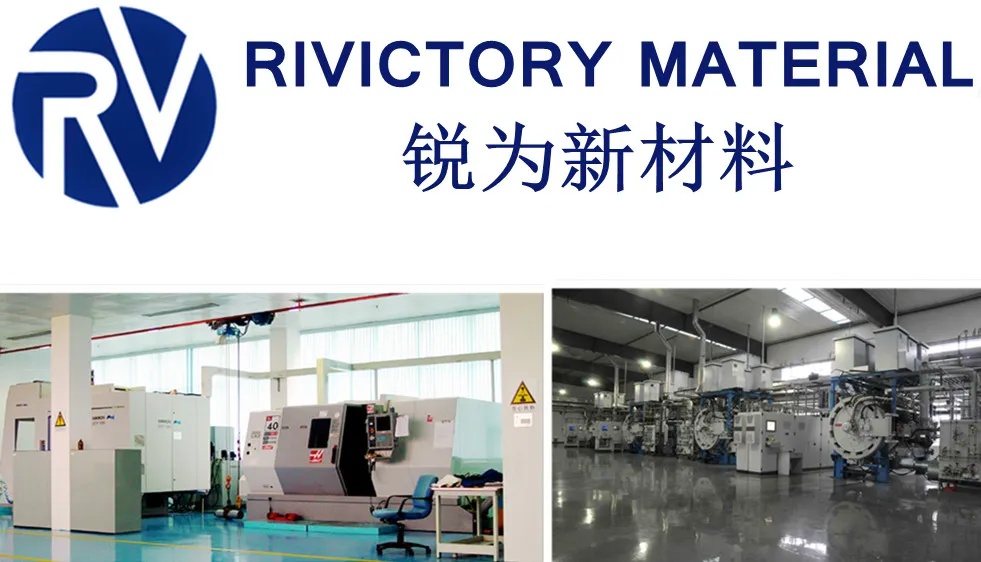

We are located in a prominent Chinese industrial base. The main products are Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. We have our own research and development team, which can customize products according to customer's requests.
