Basic Information
Application
Clarified Water Pump, Water Supply
Performance
Automatic Pump
Operation Mode
Manual, Automatic, Remote
Working Mode
Full Frequency Conversion Operation
Protection Class
IP44/ IP54
Product Description

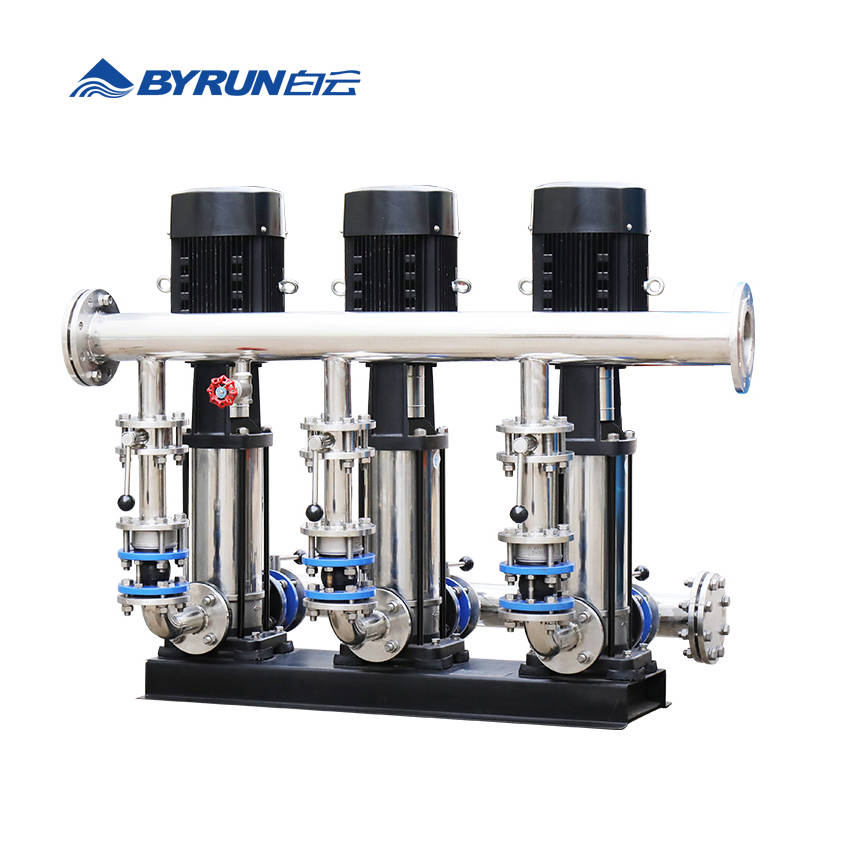

BWX Water Pump Set For Sport Stadiums Water Supply With Safety Protection System

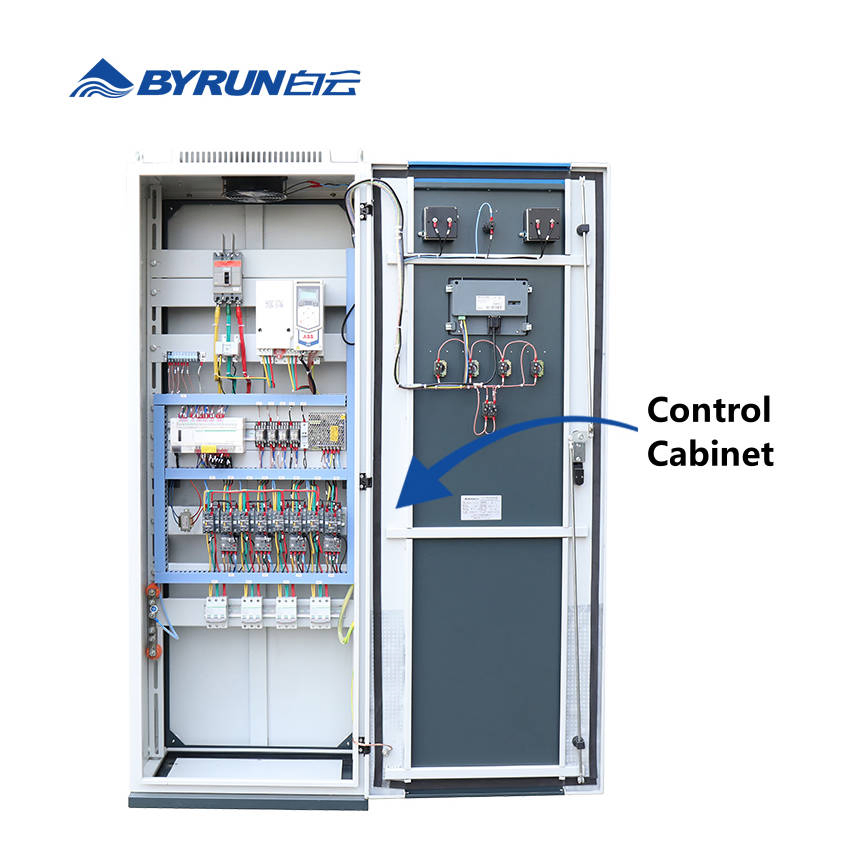

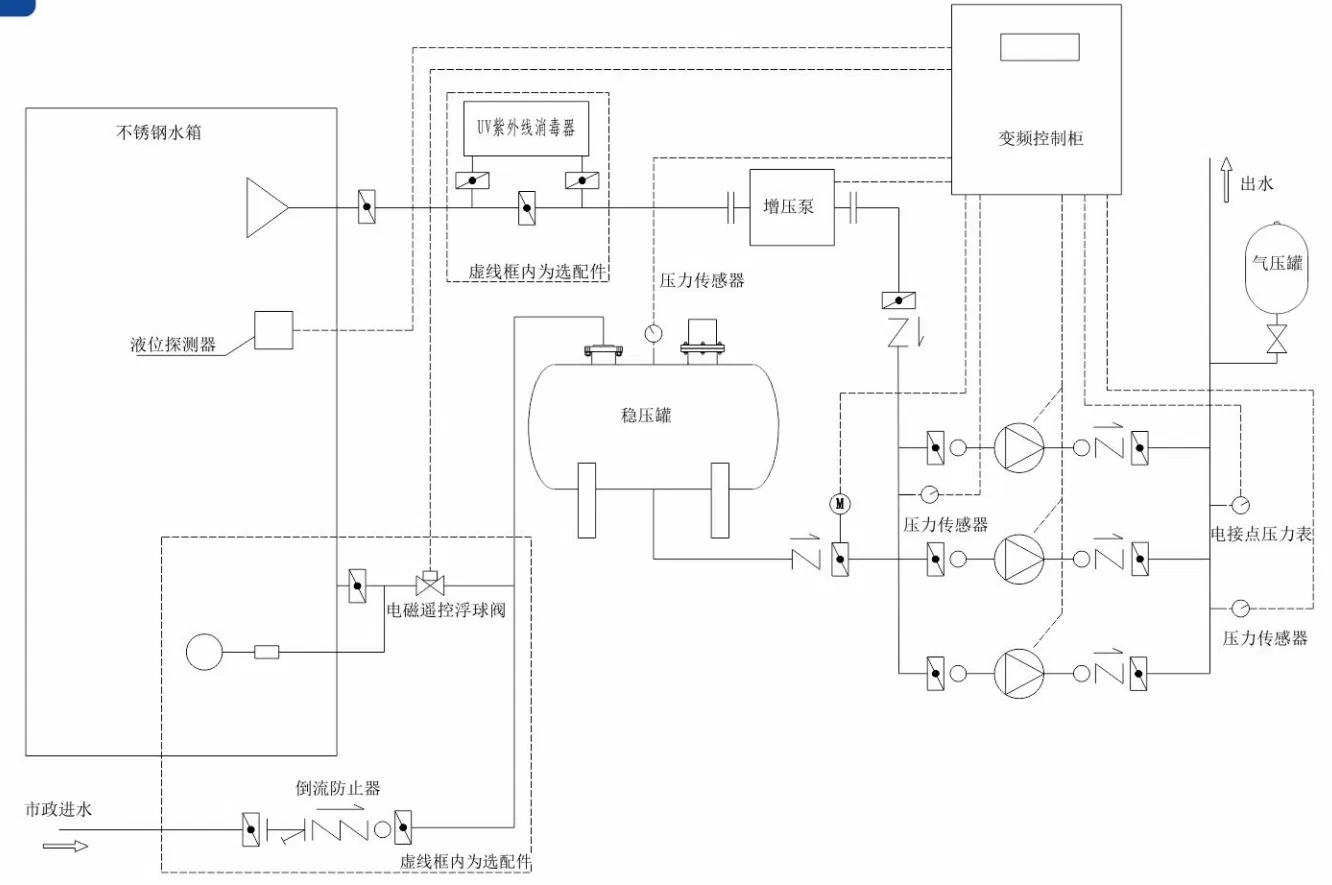

BWX series box-type stacked water supply equipment is a new integrated water supply equipment, mainly composed of stainless steel sealed water tank, pressurized pressure, steady flow tank, pressure stabilized tank, booster pump, frequency conversion control cabinet, which can not only directly take water from the natural water pipe network, superimposed water supply, but also use the water tank to stabilize the pressure adjustment and compensation of the water inlet of the equipment, so as to achieve the purpose of stacked water supply and constant pressure water supply energy saving.
◈
Reliable operation: Power outage can maintain water pressure and water supply of municipal pipe network; water is supplied by the water tank when peak or tap water stops.
◈
Regular replacement: The control system automatically replaces the water in the tank regularly to maintain the freshness of the water.
◈
Automatic peak shifting: Automatically switches to water tank mode during peak consumption and back to stacked mode after, solving unstable pressure issues.
◈
Dual-mode water supply: Features both water tank and conventional pipe network stacking modes, preventing negative pressure in municipal pipes.

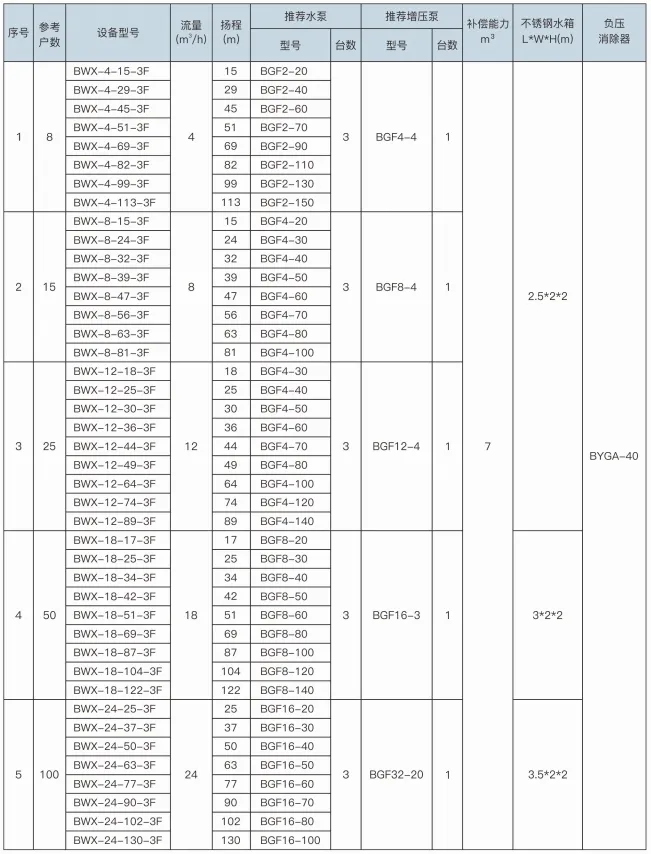

Application Specifications
Adjustment accuracy
±0.01MPa
Working mode
Full frequency conversion

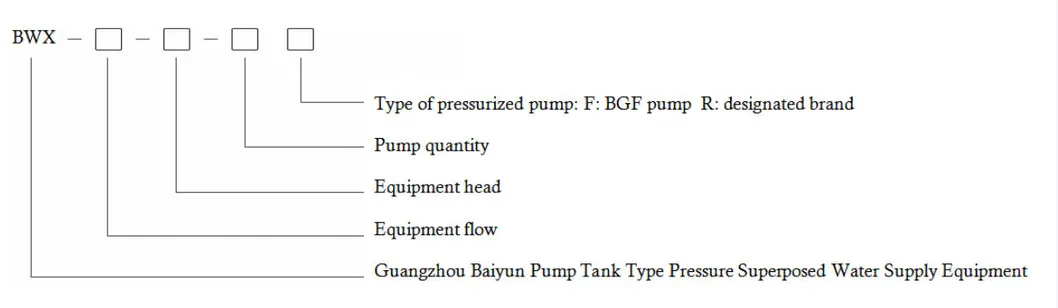

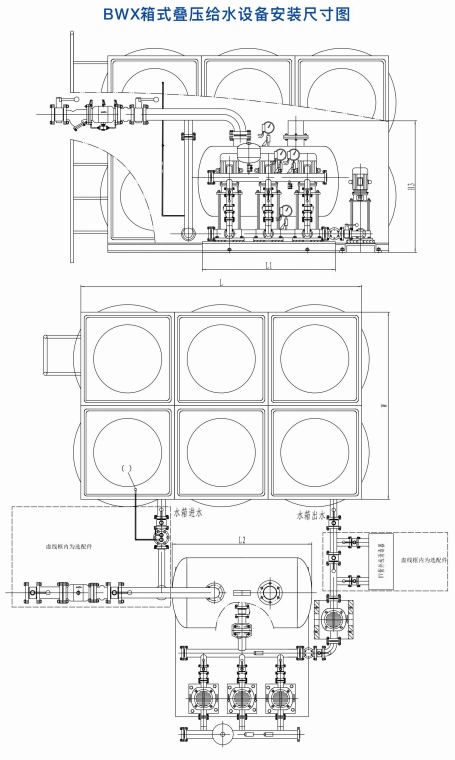

Model & Product Structure
Packaging & Shipping
Package Size
60.00cm * 35.00cm * 31.00cm
Package Type
Standard Export Wooden Case
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory based in China, specializing in high-tech pump and water supply equipment manufacturing.
2. How long is the delivery time for the water pump sets?
Generally, it takes 3-4 weeks for regular products. Delivery times for OEM or customized products are provided with the quotation.
3. What is the minimum order quantity (MOQ)?
The minimum order quantity is 1 set.
4. What are the preferred payment terms?
We usually require a 30% T/T deposit and the remaining 70% balance before shipment.
5. What is the flow and head range of the BWX series?
The flow range is 4~1000m³/h and the head range is between 10~250m.
6. Do you support professional customized services?
Yes, we provide professional customized services for special working conditions and OEM requirements.
